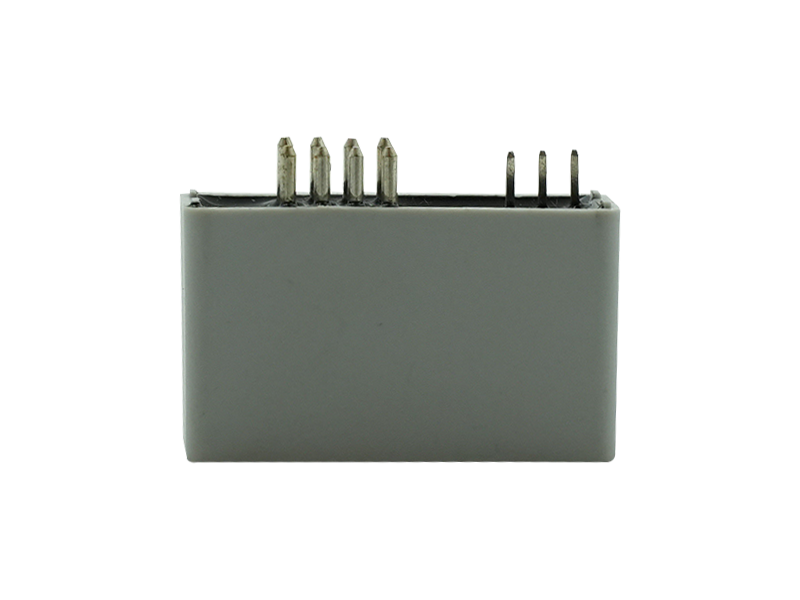

1.The primary mounting hole is Φ1.4mm
2.The secondary mounting hole is Φ1.0mm
1. Incorrect wiring may cause damage to the sensor. After the sensor is powered on, when the measured current passes through the arrow direction of the sensor, the in-phase current value can be measured at the output end.
2. Sensor current input welded to the circuit board should be solid and reliable, and the width of the input wire on the printed board is not less than 1.5mm, the shorter the better, the printed board is best to use double-sided epoxy board, and double-sided wiring, so as not to cause the board to heat for a long time.
Electrical characteristics | ||||

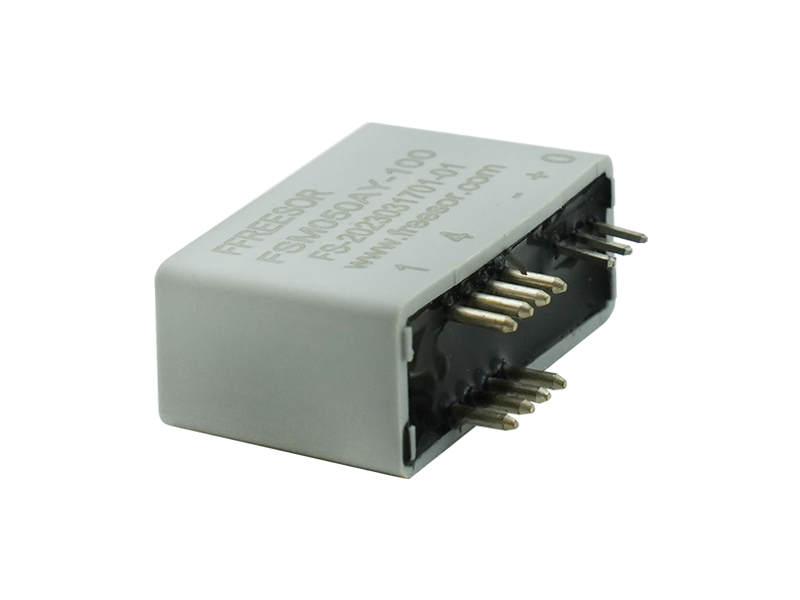

Tpye | FSM025AY-100 | FSM050AY-100 | ||
IPN | Primary nominal input current | 25 | 50 | A |
IP | Measuring range of primary current | 0～±55 | 0～±100 | A |
ISN | Rated output current of secondary side | 25 | 50 | mA |
KN | Conversion ratio | 1-2-3-4:1000 | 1-2-3-4:1000 | |
RM | Measuring resistance (V=±15V) | 54-360 | 68-180 | Ω |
VC | Supply voltage | ±15(±5%) | ±15(±5%) | V |
Ic | Static power consumption | 15 | 15 | mA |
Vd | Insulation voltage | 5KV/50Hz/1分钟 | 5KV/50Hz/1分钟 | |
εL | Linearity | <0.1 | <0.1 | %FS |
XG | Accuracy | VC=±15V 士0.5 | VC=±15V ±0.5 | % |
lO | Zero offset current | TA=25℃ <±0.15 | TA=25℃ <±0.15 | mA |
IOT | Offset current temperature drift | Ip=0 TA=-45～+85℃ ±0.5 | Ip=0 TA=-45～+85℃ ±0.5 | mA |
Tr | Response time | <1 | <1 | μs |
f | Frequency Bandwidth (-3dB) | DC～200 | DC～200 | kHz |
TA | Ambient operating temperature | -40～+85 | -40～+85 | ℃ |
TS | Ambient storage temperature | -40～+125 | -40～+125 | ℃ |
R | Internal resistance of secondary coil | 30 | 30 | Ω |
Standard | GI/FS-0105 | GI/FS-0105 | ||
