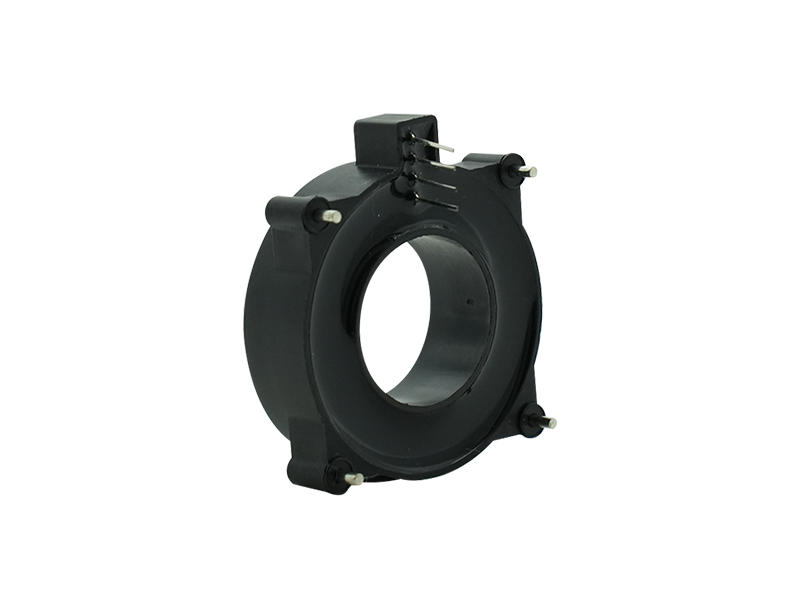

Top Brand Open Loop (direct Measuring) Hall Current Sensor-Latest Price-Freesor

Description

Advantages

Parameters

Selection

Download

电参数/Electrical characteristics
	型号Type	FSK200C22	FSK300C22	FSK500C22	FSK600C22	FS800C22	FSK1000C22
IPN	原边额定输入电流 Primary nominal input current	200	300	500	600	800	1000	A
IP	原边电流测量范围 Measuring range of primary current	0～±240	0～±360	0～±600	0～±720	0～±960	0～±1200	A
VSN	副边额定输出电压 Secondary nominal output voltage	2.5±2						V
VC	电源电压 Supply voltage	+5(±5%)						V
IC	电流消耗 Current consumption	<20						mA
Vd	绝缘电压 Insulation voltage	在原边与副边电路之间2.5 KV有效值/50Hz/1分钟
Ɛ_L	线性度 Linearity	<1						%FS
VO	零点失调电压 Zero offset voltage	T_A=25℃ 2.5±0.015						V
VOM	磁失调电压 Residual voltage	I_PN→0 <±10						mV
VOT	失调电压温漂 Thermal drift of V0	I_p=0 T_A=-25～+85℃ <±0.5						mV/℃
TR	响应时间 Response time	≤5						μs
f	频带宽度(-3dB) Frequency bandwidth(-3dB)	DC～50						kHz
T_A	工作环境温度 Ambient operating temperature	-40～+125						℃
TS	贮存环境温度 Ambient storage temperature	-40～+150						℃
R_L	负载电阻 Load resistance	≥10K						Ω
	标准 Standard	GI/FS-0105

Mechanical installation dimension

Remarks

1.Incorrect wiring may cause damage to the sensor. After the sensor is powered on, when the measured current passes through the arrow direction of the sensor, the in-phase voltage value can be measured at the output end.

2.The output amplitude of the sensor can be adjusted according to the user's needs.

3.Sensors with different rated input current and output voltage can be customized according to user requirements.

Electrical characteristics
Type	FS400-C22	Output voltage temperature drift	0.06%/℃
IPN Rated input	±400A	Current consumption	≤5mA max@5V,TA=25℃
Measure range	0～±450A	Response time	<5μs
Rated output voltage	1/2 VCO±2V	Frequency bandwidth-3db	DC～50KHz
Vo offset voltage	1/2 VCC±%Olp=0,TA=25°℃	di/dt accurately followed	>50Ajs
Supply voltage	5VDO-5%	Ambient operating temperature	-40~+125℃
Galvanic isolation	50Hz,1min,3KV	Ambient storage temperature	-40~+150℃
Linearity	4%@0～±lPN	Mass	≈18g
Overall accuracy	≤1.5%@IPN	Standards	SJ 20790-2000;JB/T 7490-2007
Offset voltage temperature drift	<±0.04%/℃
