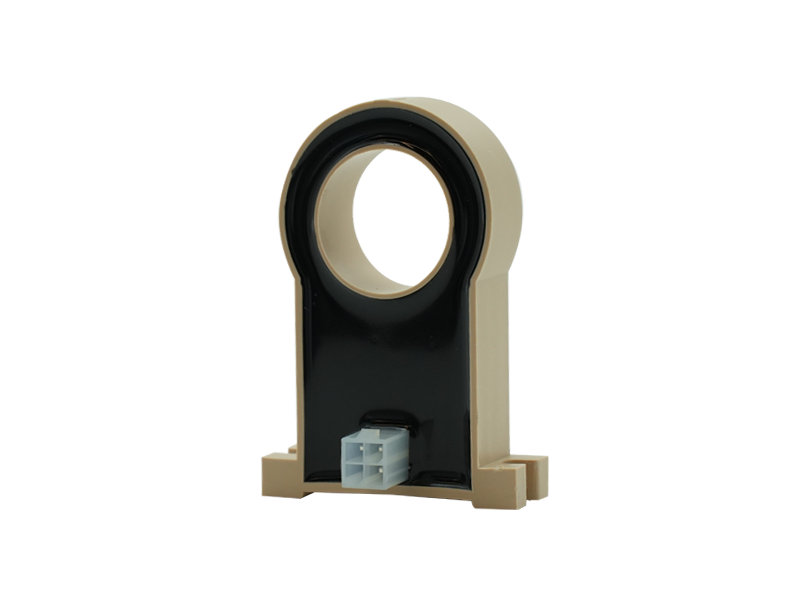

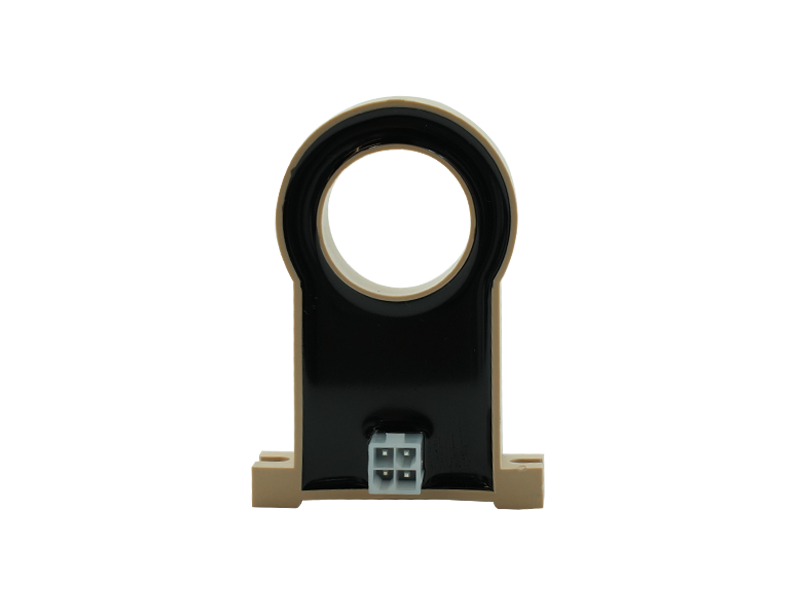

电参数/Electrical characteristics
	型号Type	FS100E2T	FS200E2T	FS300E2T	FS400E2T	FS500E2T	FS600E2T
IPN	原边额定输入电流 Primary nominal input current	100	200	300	400	500	600	A
IP	原边电流测量范围 Measuring range of primary current	0～±120	0～±240	0～±360	0～±480	0～±600	0～±720	A
VSN	副边额定输出电压 Secondary nominal output voltage	2.5±2						V
VC	电源电压 Supply voltage	+5(±5%)						V
IC	电流消耗 Current consumption	<20						mA
Vd	绝缘电压 Insulation voltage	在原边与副边电路之间2.5 KV有效值/50Hz/1分钟
Ɛ_L	线性度 Linearity	<1						%FS
VO	零点失调电压 Zero offset voltage	T_A=25℃ 2.5±0.015						V
VOM	磁失调电压 Residual voltage	I_PN→0 <±10						mV
VOT	失调电压温漂 Thermal drift of V0	I_p=0 T_A=-25～+85℃ <±0.5						mV/℃
TR	响应时间 Response time	≤5						μs
f	频带宽度(-3dB) Frequency bandwidth(-3dB)	DC～20						kHz
T_A	工作环境温度 Ambient operating temperature	-40～+125						℃
TS	贮存环境温度 Ambient storage temperature	-40～+150						℃
R_L	负载电阻 Load resistance	≥10K						Ω
	标准 Standard	GI/FS-0105

Dimensions of drawing(mm)

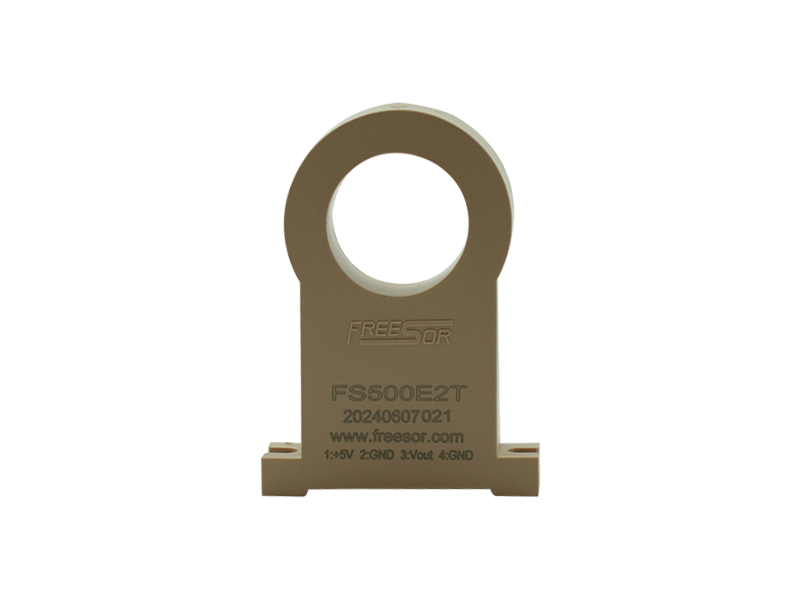

Elucidation:1:+5V2:GND3:VOUT4:GND,OFS:Zero adjustment GIN:Gain adjustment

Remarks

1.Incorrect wiring may cause damage to the sensor. After the sensor is powered on, when the measured current passes through the arrow direction of the sensor, the in-phase voltage value can be measured at the output end.

2.The output amplitude of the sensor can be adjusted according to the user's needs.

3.Sensors with different rated input current and output voltage can be customized according to user requirements.

Electrical characteristics
	Type	FS100E2T	FS200E2T	FS300E2T	FS400E2T	FS500E2T	FS600E2T
		100	200	300	400	500	600	A
IpN	Primary nominal input current	0～±120	0～±240	0～±360	0～±480	0～±600	0～±720	A
Ip	Measuring range of primary current	2.5±2						V
VsN	Secondary nominal output voltage	+5(±5%)						V
Vc	Supply voltage	Vc=±15V <20						mA
Ic	Current consumption	2.5KV RMS /50Hz/1 min between primary and secondary side circuits
Vd	Insulation voltage	<1						%FS
eL	Linearity	TA=25℃ 2.5±0.015						V
V₀	Residual voltage	Ipn→0 <±10						mV
Vow	Thermal drift of V0	Ip=0 TA=-25～+85℃ <±0.5						mV/℃
Vor	Response time	≤5						μs
Tr	Frequency bandwidth(-3dB)	DC～20						kHz
f	Ambient operating temperature	-40～+125						℃
TA	Ambient storage temperature	-40～+150						℃
Ts	Load resistance	≥10K						Q
RL	Standard	GI/FS-0105
