电参数/Electrical characteristics | ||||||
型号Type | FS-010LT | FS-020LT | FS-050LT | FS-100LT | ||
IPN | 原边额定输入电流 | 10 | 20 | 50 | 100 | mA |
IP | 原边电流测量范围 | 0～±20 | 0～±40 | 0～±100 | 0～±200 | mA |
VOUT | 副边额定输出电压 | 5±1% | V | |||
VC | 电源电压 | ±12～±15 ( ±5%） | V | |||
IC | 电流消耗 | VC=±15V <30 | mA | |||
Vd | 绝缘电压 | 在原边与副边电路之间2 .5KV 有效值/50Hz/1 分钟 2.5KV RMS /50Hz/1 min between primary and secondary side circuits | ||||
εL | 线性度 | <±1 | %FS | |||
VO | 零点失调电压 | TA =25 ℃ ±30 | mV | |||
VOT | 失调电压温漂 | IP=0 TA = -10～+70℃ <±1 | mV/℃ | |||
f | 频带宽度 | DC | ||||
TA | 工作环境温度 | -10～+70 | ℃ | |||
TS | 贮存环境温度 | -25～+85 | ℃ | |||
RL | 负载电阻 | ≥10K | Ω | |||

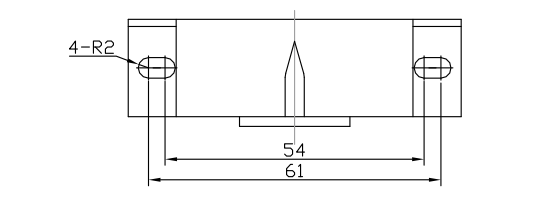

Dimensions of drawing(mm)
Elucidation：1,+15V 2,-15V 3,VOUT 4,0V(GND) OFS,Zero adjustment GIN: Amplitude adjustment
Remarks
1.Incorrect wiring may cause damage to the sensor. After the sensor is powered on, when the measured current passes through the arrow direction of the sensor, the in-phase voltage value can be measured at the output end.
2.The output amplitude of the sensor can be adjusted according to the user's needs.
3.Sensors with different rated input current and output voltage can be customized according to user requirements.
