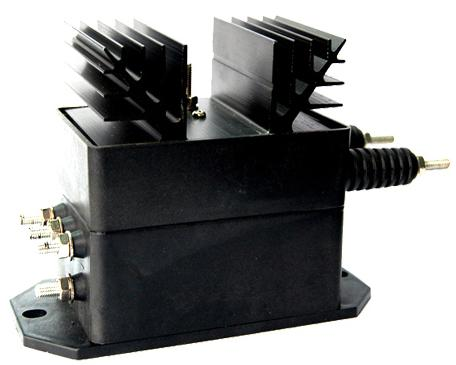

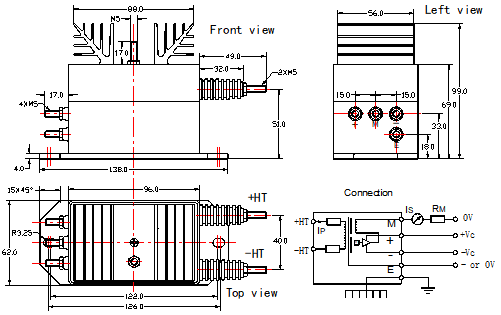

FSV6000LV Hall voltage sensor

型号

Type

FSV300LV

FSV500LV

FSV1000LV

FSV2000LV

FSV3000LV

FSV4000LV

FSV6000LV

V_PN

原边额定输入电压

Primary nominal input voltage

300

500

1000

2000

3000

4000

6000

V

V_P

原边电压测量范围

Measuring range ofprimary voltage

0～±600

0～±1000

0～±2000

0～±3000

0～±4500

0～±6000

0～±6000

V

P_P

总输入功耗

Total Input Power Consumption

1.5

1.25

2.5

5.0

7.5

10

11.6

W

K_N

匝数比

turns ratio

20000：1000

T

I_PN

原边额定输入电流

Primary side rated input current

5.0

2.5

mA

I_OUT

副边额定输出电流

Nominal output current

50±0.5%

mA

R_M

测量电阻

Measurement of resistance

V_C=±15V V_P=±2.5mA时:           50～200

V_C=±24V V_P=±2.5mA时:          100～330

V_C

电源电压

Supply voltage

±15～±24(±5%)

V

I_C

电流消耗

Current consumption

20+IpX(K_N)

mA

V_d

绝缘电压

Insulation voltage

在原边与副边电路之间12kV有效值/50Hz/1分钟

ε_L

线性度

Linearity

<0.2

%FS

I₀

失调电流

Out-of-regulation current

T_A=25℃                           <±0.20

mA

I_OT

失调电流温漂

Thermal drift of current

I_P=0  T_A=-40～+85℃                <±0.6

mA

Tr

响应时间

Response time

<200

us

T_A

工作环境温度

Ambient operating temperature

-40～+85

℃

T_S

贮存环境温度

Ambient storage temperature

-40～+125

℃

R_p

输入内阻

Input Internal Resistance

60K

200K

400K

800K

1.2M

1.6M

2.4M

Ω

R_s

副边线圈内阻

Internal resistance of the secondary coil

T_A=85℃                             55

Ω

m

质量(约）

Weight(approx)

855

g

标准

standard

GI/FS-0105
