电参数/Electrical characteristics | ||||||
型号 Type | FSM050LP | FSM100LP | FSM125LP | FSM200LP | ||
IPN | 原边额定输入电流 Primary nominal input current | 50 | 100 | 125 | 200 | A |
IP | 原边电流测量范围 Measuring range of primary current | 0~±150 | 0~±300 | 0~±375 | 0~±600 | A |
ISN | 副边额定输出电流 Secondary nominal output current | 50±0.5% | 50±0.5% | 125±0.5% | 100±0.5% | mA |
KN | 匝数比 Conversion ratio | 1:1000 | 1:2000 | 1:1000 | 1:2000 | |
RM | 测量电阻(VC=±18V/IP) Measuring resistance (VC=±18V/IP) | 0~100 | 0~68 | 0~15 | 0~12 | Ω |
VC | 电源电压 Supply voltage | ±12~±18 ( ±5%） | V | |||
IC | 电流消耗 Current consumption | VC=±18V 10+Is | mA | |||
Vd | 绝缘电压 Insulation voltage | 在原边与副边电路之间2 .5KV 有效值/50Hz/1 分钟 | ||||
εL | 线性度 Linearity | <0.1 | %FS | |||
X | 精度 Accuracy | ±0.5 | % | |||
IO | 零点失调电流 Zero offset current | TA =25 ℃ <±0.20 | mA | |||
IOT | 失调电流温漂 Thermal drift of I0 | IP=0 TA =-25～+85℃ ≤士0.005 | mA/ ℃ | |||
Tr | 响应时间 Response time | <1 | μS | |||
f | 频带宽度(-3dB) Frequency bandwidth(-3dB) | DC～200 | kHz | |||
TA | 工作环境温度 Ambient operating temperature | -25～+85 | ℃ | |||
TS | 贮存环境温度 Ambient storage temperature | -40 ~+100 | ℃ | |||
RS | 副边线圈内阻(TA=25℃) Secondary coil resistance(TA=25℃) | 30 | 45 | 30 | 45 | Ω |
标准 Standard | GI/FS-0105 | |||||
外形尺寸(mm )/Dimensions of drawing (mm)

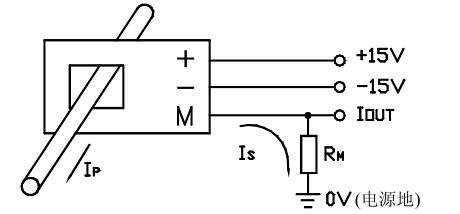

外部接线图/ Connection
使用说明/Remarks
1.错误的接线可能导致传感器损坏。传感器通电后，当被测电流从传感器箭头方向穿过，即可在输出端测得同相电压值。
Incorrect wiring may cause damage to the sensor. After the sensor is powered on, when the measured current passes through the arrow direction of the sensor, the in-phase voltage value can be measured at the output end.
2.当输入电流排完全充满原边穿孔时动态特性最佳(di/dt 和响应时间)。
The dynamic characteristics (di/dt and response time) are best when the input current row completely fills the primary side perforation.
3.测量小于25A 的电流时,可以用多匝线圈,以便得到最好的精度,但考虑到散热问题,传感器的长期工作电流应小于额定输入电流IPN。
When measuring currents less than 25A, multi-turn coils can be used to get the best accuracy, but in consideration of heat dissipation, the long-term operating current of the sensor should be less than the rated input current IPN.
