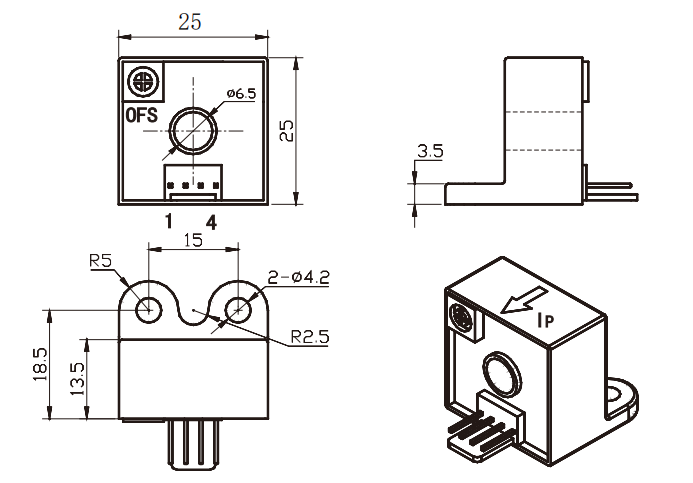

FSM030GBT5 Closed loop (magnetically) Hall current sensor

型号

Type

FSM010GBT5

FSM020GBT5

FSM030GBT5

FSM040GBT5

I_PN

原边额定输入电流

Primary nominal input current

10

20

30

40

A

Ip

原边电流测量范围

 @2.5±1V

Measuring range of primary current

0～±20

0～±40

0～±60

0～±80

A

V_OUT

副边额定输出电压

Nominal output voltage

1V或2V(±0.5%)

V

Vc

电源电压

Supply voltag

+5(±5%)

V

Ic

电流消耗

Current consumption

额定电流时                     16-35

mA

Va

绝缘电压

Insulation voltage

在原边与副边电路之间2.5kV有效值/50Hz/1分钟

εL

线性度

Linearity

<0.2

%FS

Vo

零点失调电压

Offset voltage

TA=25℃                       2.5±1%

mV

V_OM

磁失调电压

Residual voltage

Ipn→0                         <±15

mV

V_OT

失调电压温漂

Thermal drift of V0

Ip=0 TA=-25～+85℃            <±0.5

mV/℃

Tr

响应时间

Response time

≤1

μs

f

频带宽度(-3dB)

Frequency bandwidth(-3dB)

DC～100

kHz

T_A

工作环境温度

Ambient operating temperature

-40～+85

℃

T_S

贮存环境温度

Ambient storage temperature

-40～+100

℃

R_L

负载电阻

Load resistance

≥10K

Ω

m

质量(约)

Quality (approx)

12

g

标准

Standard

GI/FS-0105
