FS2000EK2T Open loop (direct measuring) Hall current sensor

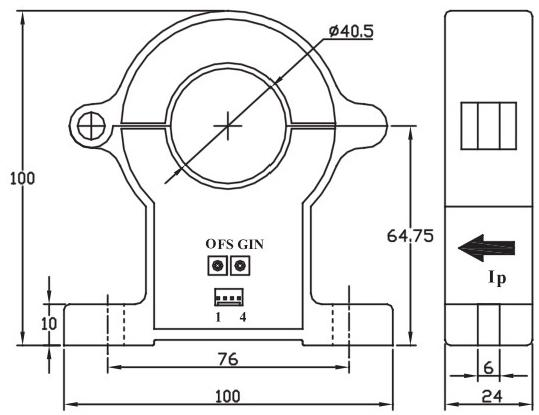

型号

FS300EK2T

FS400EK2T

FS500EK2T

FS800EK2T

FS1300EK2T

FS2000EK2T

I

原边额定输入电流

Rated input current on primary side

300

400

500

800

1300

2000

A

I_p

原边电流测量范围

Primary current measurement range

0～±600

0～±800

0～±1000

0～±1600

0～±2600

0～±3000

A

V_SN

副边额定输出电压

Rated output voltage of secondary side

2.5±2V

V

V_C

电源电压

Supply voltage

+5V or (13V-30V)

V

I_C

电流消耗

Current consumption

V=±15V                           <25

mA

v_d

绝缘电压

Insulation voltage

在原边与副边电路之间5KV有效值/50Hz/1分钟

ε_L

线性度

Linearity

<1

%FS

V₀

零点失调电压

Zero offset voltage

TA=25℃                          <±25

mV

V_OM

磁失调电压

Magnetic offset voltage

I→0                             <±25

mV

V_OT

失调电压温漂

Offset voltage temperature drift

Ip=0 T=-25～+85℃                <±1

mV/℃

Tr

响应时间

Response time

≤3

us

f

频带宽度(-3dB)

Band width (-3dB)

DC～20

kHz

T_A

工作环境温度

Operating ambient temperature

-40～+85

℃

T_s

贮存环境温度

Storage ambient temperature

-40～+100

℃

R_L

负载电阻

Load resistance

≥10K

Ω

标准

Standard

GI/FS-0105
