FS20000EK5 Open loop (direct measuring) Hall current sensor

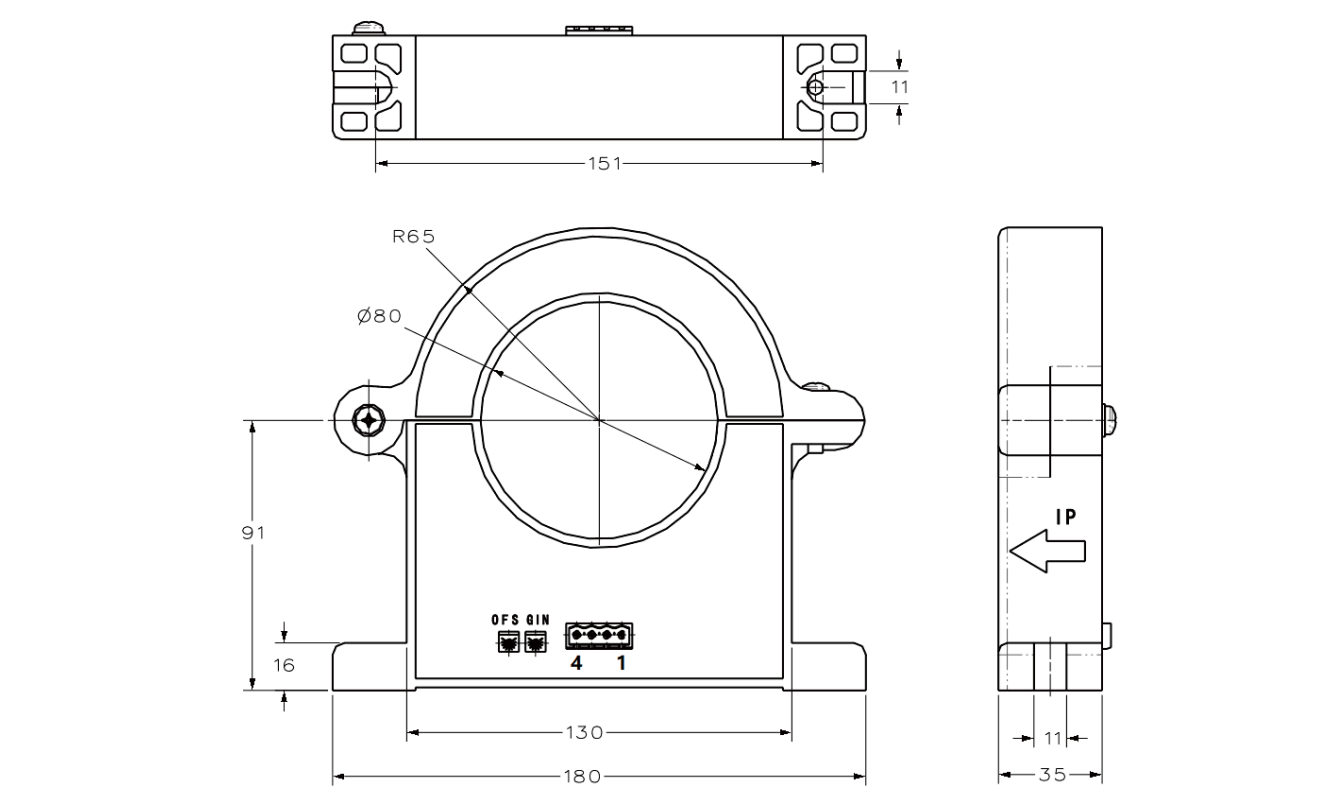

型号

Tpye

FS500EK5

FS1000EK5

FS5000EK5

FS8000EK5

FS12000EK5

FS20000EK5

I_PN

原边额定输入电流

Primary nominal input current

500

1000

5000

8000

12000

20000

A

I_P

原边电流测量范围

Measuring range of primary current

0～±1000

0～±2400

0～±6000

0～±10000

0～±14000

0～±24000

A

V_OUT

副边额定输出电压

Nominal output voltage

4或5(±1%)

V

V_C

电源电压

Supply voltage

±12～±15(±5%)

V

I_C

电流消耗

Current consumption

<50

mA

V_d

绝缘电压

Insulation voltage

在原边与副边电路之间6kV有效值/50Hz/1分钟

6kV RMS /50Hz/1 min between primary and secondary side circuits

ε_L

线性度

Linearity

<1

%FS

V_O

零点失调电压

Offset voltage

T_A=25℃                           <25

mV

V_OM

磁失调电压

Residual voltage

I_PN→0                            <20

mV

V_OT

失调电压温漂

Thermal drift of V₀

I_PN=0 T_A=-25～+85℃               <±1

mV/℃

Tr

响应时间

Response time

≤10

μs

f

频带宽度(-3dB)

Frequency Bandwidth (-3dB)

DC～6

kHz

T_A

工作环境温度

Ambient operating temperature

-40～+85

℃

T_S

贮存环境温度

Ambient storage temperature

-40～+100

℃

R_L

负载电阻

Load resistance

≥10K

Ω

m

质量(约)

Mass (approx.)

1165

g

标准

Standard

GI/FS-0105
